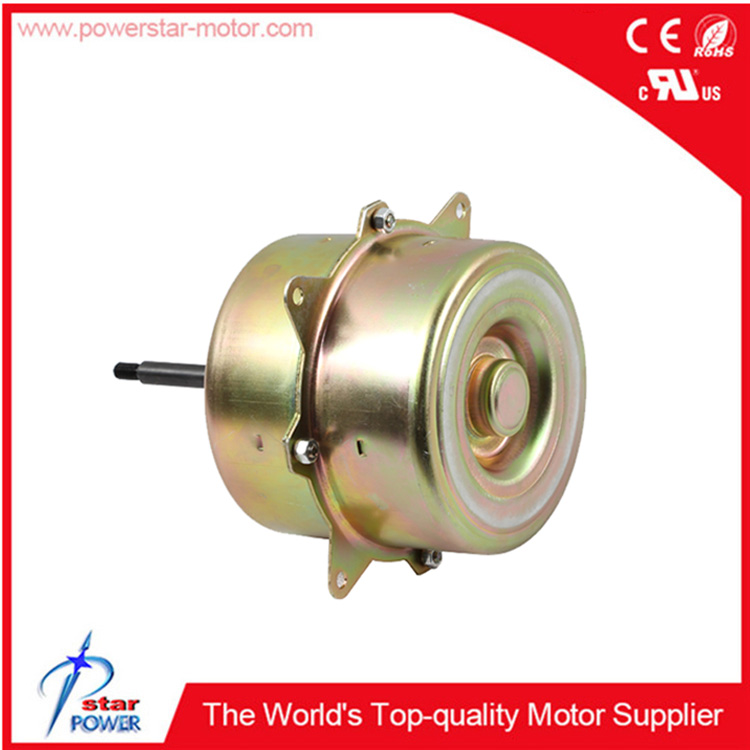

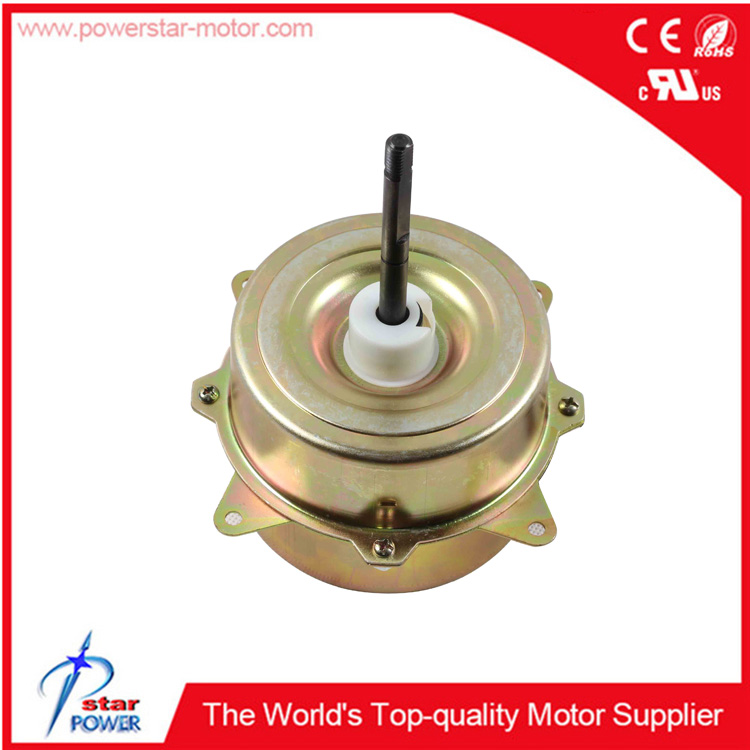

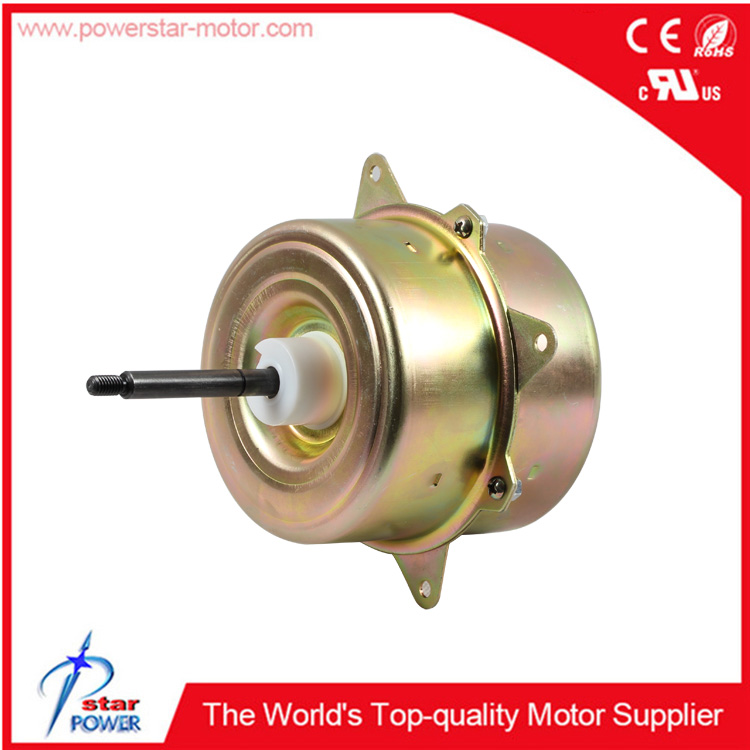

Single Phase High Speed 220V Fan Motor for kitchen range hood

Single phase high rpm 220v Fan Motor for kitchen hood Product Description

Powerstar:	Powerstar
Model Number:	YDK-65-6
Type:	Asynchronous Moter
Rated Voltage	115V/208-230V
Frequency:	50/60hz
Output Power:	20-70W
Pole:	6
Efficiency:	IE3
Protect Feature:	enclosed
Speed:	700-900 rpm
rotation	CW/CCW
Phase:	Single-phase
Bearing:	Ball bearing
Place of Origin:	Guangdong China (Mainland)
Certification:	ROHS,UL
Features:	• Reversible plug for easy rotation • Class F Insulation • Quick installation • Energy efficient • Quiet operation • Ball bearing • Dual voltage 115/208-230 voltage • Diameter: Steel cover 96mm • Automatic overload • Operating temp -10-43 degree • Power:20-70W • Rated Frequency:50/60Hz • Number of Pole:4/6Pole • Shaft size:8mm • Speed: 700-900 rpm • Thermal protection • Usage: outdoor air conditioner • High efficiency,High reliability,Little vibration,Low noise Specifications A.smooth running, B. long work times and Low temperature C.low noise, D.steady performance. E.large loading capacity



Air Conditioner Motors

Part No.

Model

Power(W)

Voltage(V)

Frequency(Hz)

Pole

Speed(RPM)

Rotation

Shaft(mm)

Bearing

DIA(mm)

Protect Feature

Insulation Class

1

YDK-20-6

20

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

2

YDK-25-6

25

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

3

YDK-30-6

30

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

4

YDK-35-6

35

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

5

YDK-40-6

40

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

6

YDK-45-6

45

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

7

YDK-50-6

50

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

8

YDK-55-6

55

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

9

YDK-60-6

60

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

10

YDK-65-6

65

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

11

YDK-70-6

70

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

12

YDK-250-6

250

115/208-230V

50/60

6

700-900

CW/CCW

8

ball

Steel cover 96

enclosed

F

  hot     Zhongshan Powerstar Motor Manufacturing Co.,Ltd. is a professional motor;manufacturer with 15 years’ experience of designing and producing.   The main products are AC Induction gear motor, Fan Motor, Air conditioner motor, Household appliance 3.3 inches motor, Air mover motor, Air cooler motor, Pump Motor, Road barrier motor, Air inflatable Blower motor.    We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.

Contact us if you need more details on Fan Motor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 200v Motor、Motor For Kitchen Hood. If these products fail to match your need, please contact us and we would like to provide relevant information.
