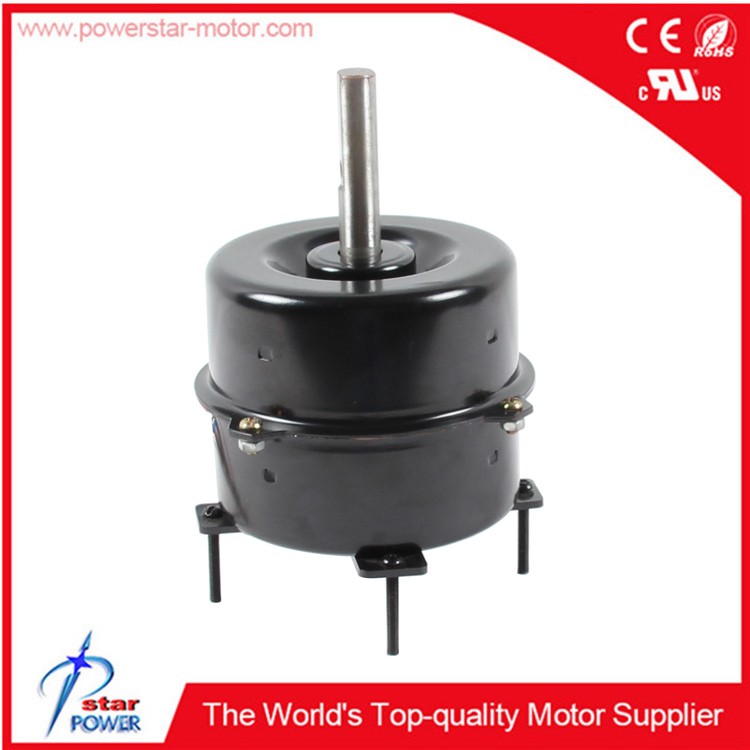

110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner

Packaging:
strong carton with wood plate and plastic bag, 250pcs per carton. Or according to customer's request
Supply Ability:
30000 Piece/Pieces per Month
Port:
Zhongshan

Product Description

110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner 110V- 230V 700-900rpm 45W Reverse Rotation Single Phase Ac Fan Motor for Air Conditioner Product Description 110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner  110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner
Powerstar: Powerstar
Model Number: YDK-70-6
Type: Asynchronous Moter
Rated Voltage 115V/208-230V
Frequency: 50/60hz
Output Power: 20-70W
Pole: 6
Efficiency: IE3
Protect Feature: enclosed
Speed: 700-900 rpm
rotation CW/CCW
Phase: Single-phase
Bearing: Ball bearing
Place of Origin: Guangdong China (Mainland)
Certification: ROHS,UL
Features:

• Reversible plug for easy rotation
• Class F Insulation
• Quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Dual voltage 115/208-230 voltage
• Diameter: Steel cover 96mm
• Automatic overload
• Operating temp -10-43 degree
• Power:20-70W

• Rated Frequency:50/60Hz

• Number of Pole:4/6Pole
• Shaft size:8mm
• Speed: 700-900 rpm
• Thermal protection
• Usage: outdoor air conditioner
• High efficiency,High reliability,Little vibration,Low noise Specifications
A.smooth running,
B. long work times and Low temperature
C.low noise,
D.steady performance.
E.large loading capacity


Air Conditioner Motors
Part No. Model Power(W) Voltage(V) Frequency(Hz)  Pole Speed(RPM) Rotation Shaft(mm) Bearing DIA(mm) Protect Feature Insulation Class
1 YDK-20-6 20 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
2 YDK-25-6 25 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
3 YDK-30-6 30 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
4 YDK-35-6 35 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
5 YDK-40-6 40 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
6 YDK-45-6 45 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
7 YDK-50-6 50 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
8 YDK-55-6 55 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
9 YDK-60-6 60 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
10 YDK-65-6 65 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
11 YDK-70-6 70 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
12 YDK-250-6 250 115/208-230V 50/60 6 700-900 CW/CCW 8 ball Steel cover 96 enclosed F
  110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner 110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner hot 110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner   110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner Zhongshan Powerstar Motor Manufacturing Co.,Ltd. is a professional motor;manufacturer with 15 years’ experience of designing and producing.   The main products are AC Induction gear motor, Fan Motor, Air conditioner motor, Household appliance 3.3 inches motor, Air mover motor, Air cooler motor, Pump Motor, Road barrier motor, Air inflatable Blower motor.    We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit. 110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner 110V- 230V 700-900RPM 45W Reverse Rotation Single Phase AC Fan Motor for Air Conditioner

Contact us if you need more details on Fan Motor For Air Conditioner. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Air Conditioner Motor、Air conditioner fan motor. If these products fail to match your need, please contact us and we would like to provide relevant information.
